Bull plug Hollow welding Bevel

High-strength threaded plugs for secure pipe sealing and industrial applications

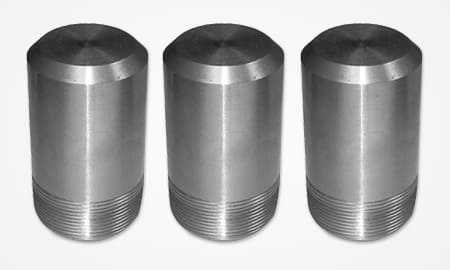

Product View

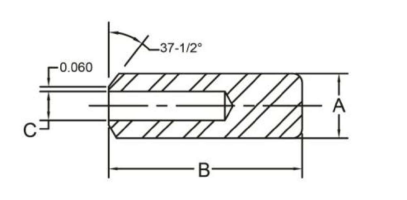

Product Structure

Precision Hollow Welding Bevel Design

The Bull Plug – Hollow Welding Bevel is designed for secure end closure in piping systems requiring welded connections. Its bevelled end ensures strong and reliable welding, while the hollow design allows for controlled flow or testing applications. Manufactured with high-strength materials, it provides excellent durability, structural integrity, and performance in high-pressure industrial environments.

Key Design Features

Weld bevel end for strong and secure welded joints
Hollow design for flow control or testing applications
High-strength construction for durability
Suitable for high-pressure and critical applications
Corrosion-resistant material options available
Reliable performance in harsh industrial environments

Size Range

DN50 – DN300

Pressure Class

SCH 40 / 80 / 160

Connection Type

Weld Bevel

Standard

ASME B16.25

Material

Carbon / Alloy / SS

Key Features

Strong Welded Performance & Reliability

Weld Bevel End Design

Engineered with precision bevel edges to ensure strong, secure, and high-quality welded joints in piping systems.

Weld-Ready Finish

Hollow Core Functionality

Designed with an internal passage allowing controlled flow, pressure testing, or system inspection where required.

Flow & Testing Support

High Strength Construction

Manufactured using high-quality materials to provide excellent strength and durability under demanding conditions.

Heavy-Duty Performance

Suitable for High-Pressure Systems

Designed to perform reliably in high-pressure industrial applications requiring strong welded connections.

Industrial Grade Use

Corrosion Resistant Options

Available in multiple material grades including stainless and alloy steel for long service life in harsh environments.

Extended Lifespan

Hollow, Welding Bevel

ASTM A234, MSS SP-95, ASME B16.25

👉 Swipe to view table →

Pipe Size	A	B	C				Wt. Ea.
Pipe Size	A	B	STD	XH	160	XXH	STD	XH	160	XXH
1	1.312	3.000	1.031	0.937	0.781	0.578	-	0.67	1.38	1.00
1-1/4	1.688	3.250	1.343	1.250	1.140	0.875	-	1.00	2.25	1.50
1-1/2	2.000	3.500	1.593	1.484	1.312	1.062	-	1.17	2.00	2.00
2	2.375	4.000	2.000	1.937	1.671	1.484	2.25	2.74	3.50	3.50

Applications

Engineered for Welded Industrial Systems

🔥

High-Pressure Welding Lines

🧪

Testing & Inspection Systems

🏭

Process & Industrial Pipelines

⚙️

Fabrication & Plant Systems

FAQ

Frequently Asked Questions

What is a Bull Plug – Hollow Welding Bevel? +

A Hollow Welding Bevel Bull Plug is a pipe fitting designed to seal pipeline ends using welded connections. It features a bevel edge for strong welding and a hollow core for testing or controlled flow applications.

What standards does it follow? +

These plugs are manufactured according to ASTM A234, MSS SP-95, and ASME B16.25 standards, ensuring quality and compatibility in industrial piping systems.

What are the advantages of a weld bevel end? +

The weld bevel end allows for strong, permanent joints that can withstand high pressure, temperature, and mechanical stress, making it ideal for critical applications.

Which materials are available? +

Hollow welding bevel bull plugs are available in Carbon Steel, Alloy Steel, and Stainless Steel to suit different operating environments and corrosion conditions.

Where are hollow welding bevel bull plugs used? +

They are widely used in welded piping systems, fabrication setups, pressure testing lines, and industrial process pipelines where strong and reliable end closures are required.

Get High-Quality Hollow Welding Bevel Bull Plugs for Your Project

Looking for reliable and high-performance welded pipe fittings? Contact us today to get customized solutions, competitive pricing, and fast delivery for your industrial requirements.
