Swage Nipples – Eccentric (TBE, BBE, PBE)

Eccentric Swage Nipples are designed to connect pipes of different diameters while maintaining a non-centered (offset) alignment. This design is particularly useful in piping systems where drainage, venting, or maintaining a specific flow direction is critical. Available in Threaded (TBE), Bevel (BBE), and Plain (PBE) end types, these fittings provide flexibility for both welded and threaded installations. Manufactured with precision, they ensure high strength, durability, and reliable performance in demanding industrial environments such as oil & gas, petrochemical, and process industries.

Key Design Features

Eccentric design for offset flow alignment
Available in TBE, BBE, and PBE end connections
Supports both threaded and welded installations
Reduces fluid accumulation and improves drainage
Manufactured in CS, SS, and Alloy Steel

Size Range

1/2" – 24"

Pressure Rating

SCH 40 / 80 / 160 / XXH
Class 3000 / 6000 / 9000

End Type

TBE / BBE / PBE

Standards

ASME B16.11 / B16.9

Material

CS / SS / Alloy Steel

Key Features

Engineered for Offset & Reliable Connections

Eccentric Offset Design

Designed with an offset centerline to maintain proper drainage and avoid fluid accumulation in piping systems.

Ideal for Horizontal Pipelines

Multiple End Connections

Available in Threaded (TBE), Bevel (BBE), and Plain (PBE) ends to support both welded and threaded installations.

TBE / BBE / PBE Options

Optimized Flow Performance

Ensures smooth transition between pipe sizes while maintaining flow direction and reducing turbulence.

Improved System Efficiency

High Strength & Durability

Manufactured from premium materials to withstand high pressure, temperature, and mechanical stress.

SCH & Class Rated Options

Corrosion Resistant Materials

Available in Carbon Steel, Stainless Steel, and Alloy Steel for long-lasting performance in harsh environments.

CS / SS / Alloy Steel

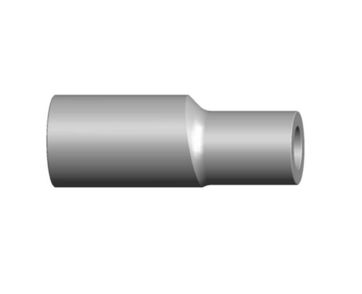

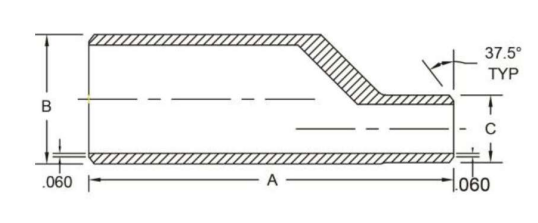

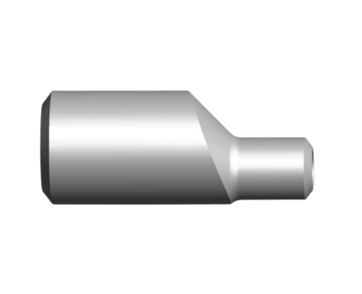

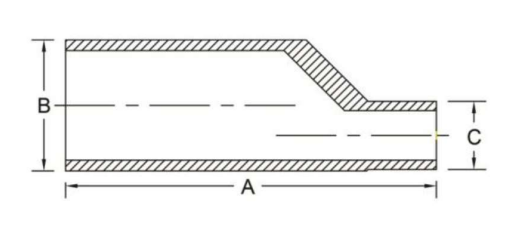

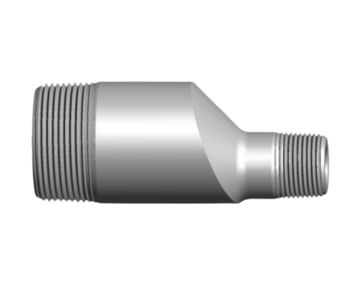

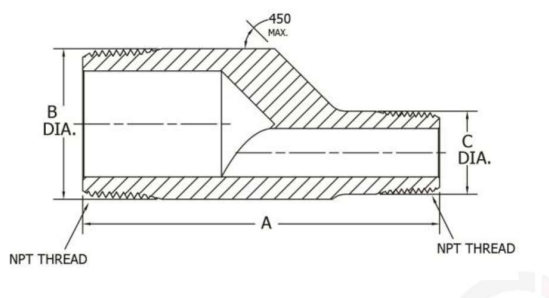

Swage Nipples Eccentric TBЕ, ВВЕ, РВЕ Dimensions Table

Pipe Size	A	B	C	D	Wt. Ea.
Pipe Size	A	B	C	D	Std	XH	XXH
3/8 X 1/8	2.500	0.675	0.405	N/A	0.25	0.38	0.38
3/8 X 1/4	2.500	0.675	0.540	N/A	0.25	0.38	0.38
1/2 X 1/4	2.750	0.840	0.540	N/A	0.33	0.50	0.50
1/2 X 3/8	2.750	0.840	0.675	N/A	0.33	0.50	0.50
3/4 X 1/4	3.000	1.050	0.540	N/A	0.50	0.75	0.75
3/4 X 3/8	3.000	1.050	0.675	N/A	0.50	0.75	0.75
3/4 X 1/2	3.000	1.050	0.840	N/A	0.50	0.75	0.75
1 X 1/4	3.500	1.315	0.540	N/A	0.67	1.00	1.00
1 X 3/8	3.500	1.315	0.675	N/A	0.67	1.00	1.00
1 X 1/2	3.500	1.315	0.840	N/A	0.67	1.00	1.00
1 X 3/4	3.500	1.315	1.050	N/A	0.67	1.00	1.00
1-1/4 X 1/2	4.000	1.660	0.840	N/A	1.00	1.50	1.50
1-1/4 X 3/4	4.000	1.660	1.050	N/A	1.00	1.50	1.50
1-1/4 X 1	4.000	1.660	1.315	N/A	1.00	1.50	1.50
1-1/2 X 1/2	4.500	1.900	0.840	N/A	1.16	2.00	2.00
1-1/2 X 3/4	4.500	1.900	1.050	N/A	1.16	2.00	2.00
1-1/2 X 1	4.500	1.900	1.315	N/A	1.16	2.00	2.00
1-1/2 X 1-1/4	4.500	1.900	1.660	N/A	1.16	2.00	2.00
2 X 1/4	6.500	2.375	0.540	N/A	3.00	4.25	4.25
2 X 3/8	6.500	2.375	0.675	N/A	3.00	4.25	4.25
2 X 1/2	6.500	2.375	0.840	N/A	3.00	4.25	4.25
2 X 3/4	6.500	2.375	1.050	N/A	3.00	4.25	4.25
2 X 1	6.500	2.375	1.315	2.00	3.00	4.25	4.25
2 X 1-1/4	6.500	2.375	1.660	2.00	3.00	4.25	4.25
2 X 1-1/2	6.500	2.375	1.900	2.00	3.00	4.25	4.25
2-1/2 X 1	7.000	2.875	1.315	3.00	3.50	8.00	8.00
2-1/2 X 1-1/4	7.000	2.875	1.660	3.00	3.50	8.00	8.00
2-1/2 X 1-1/2	7.000	2.875	1.900	3.00	3.50	8.00	8.00
2-1/2 X 2	7.000	2.875	2.375	3.00	3.50	8.00	8.00
3 X 1/2	8.000	3.500	0.840	4.50	6.00	11.00	11.00
3 X 3/4	8.000	3.500	1.050	4.50	6.00	11.00	11.00
3 X 1	8.000	3.500	1.315	4.50	6.00	11.00	11.00
3 X 1-1/4	8.000	3.500	1.660	4.50	6.00	11.00	11.00
3 X 1-1/2	8.000	3.500	1.900	4.50	6.00	11.00	11.00
3 X 2	8.000	3.500	2.375	4.50	6.00	11.00	11.00
3 X 2-1/2	8.000	3.500	2.875	4.50	6.00	11.00	11.00
4 X 1	9.000	4.500	1.315	7.50	10.00	18.00	18.00
4 X 1-1/4	9.000	4.500	1.660	7.50	10.00	18.00	18.00
4 X 1-1/2	9.000	4.500	1.900	7.50	10.00	18.00	18.00
4 X 2	9.000	4.500	2.375	7.50	10.00	18.00	18.00
4 X 2-1/2	9.000	4.500	2.875	7.50	10.00	18.00	18.00
4 X 3	9.000	4.500	3.500	7.50	10.00	18.00	18.00

Applications

Where Eccentric Swage Nipples Are Used

💧

Drainage & Pump Suction Lines

🏭

Petrochemical & Refineries

⚙️

Process & Chemical Industries

⚡

Power Plants & Energy Sector

🔧

Threaded & Welded Pipeline Systems

FAQ

Swage Nipples – Common Questions

What are Eccentric Swage Nipples? +

Eccentric Swage Nipples are pipe fittings used to connect pipes of different diameters while maintaining an offset (non-centered) alignment. This helps in proper drainage and prevents fluid accumulation in piping systems.

What end connections are available? +

They are available in Threaded Both Ends (TBE), Bevel Both Ends (BBE), and Plain Both Ends (PBE), allowing flexibility for both welded and threaded piping systems.

Why use eccentric instead of concentric swage nipples? +

Eccentric swage nipples are preferred where drainage or flow direction is important, especially in horizontal pipelines, as they prevent air pockets and liquid accumulation.

What materials are used for manufacturing? +

They are manufactured using high-quality Carbon Steel, Stainless Steel, and Alloy Steel to ensure strength, durability, and corrosion resistance in demanding environments.

What are the pressure ratings? +

Eccentric swage nipples are available in both threaded pressure classes (3000, 6000, 9000) and pipe schedule ratings (SCH 40, 80, 160, XXH) depending on the end connection type.
